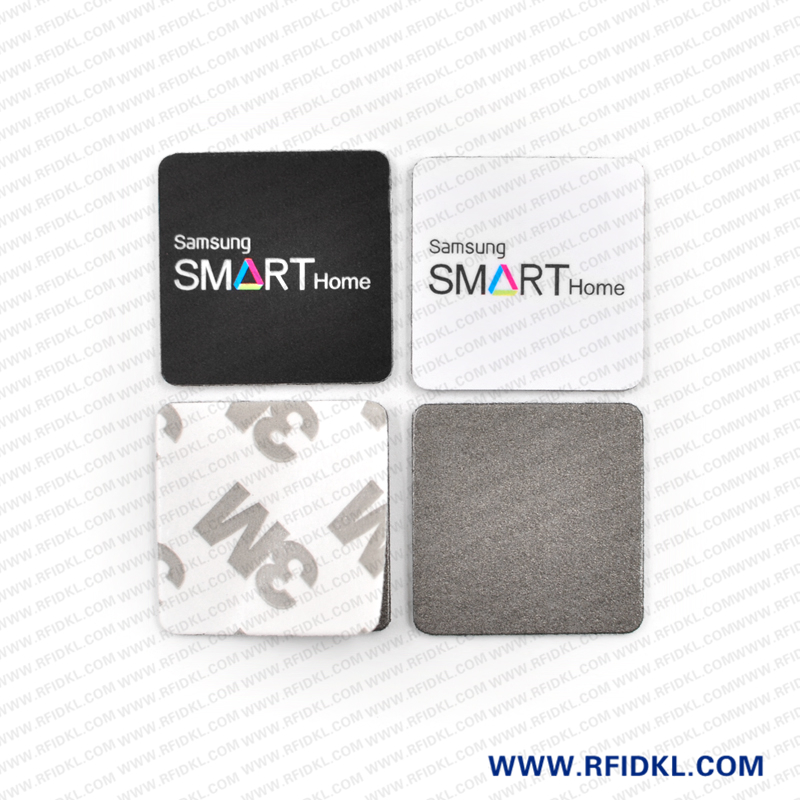

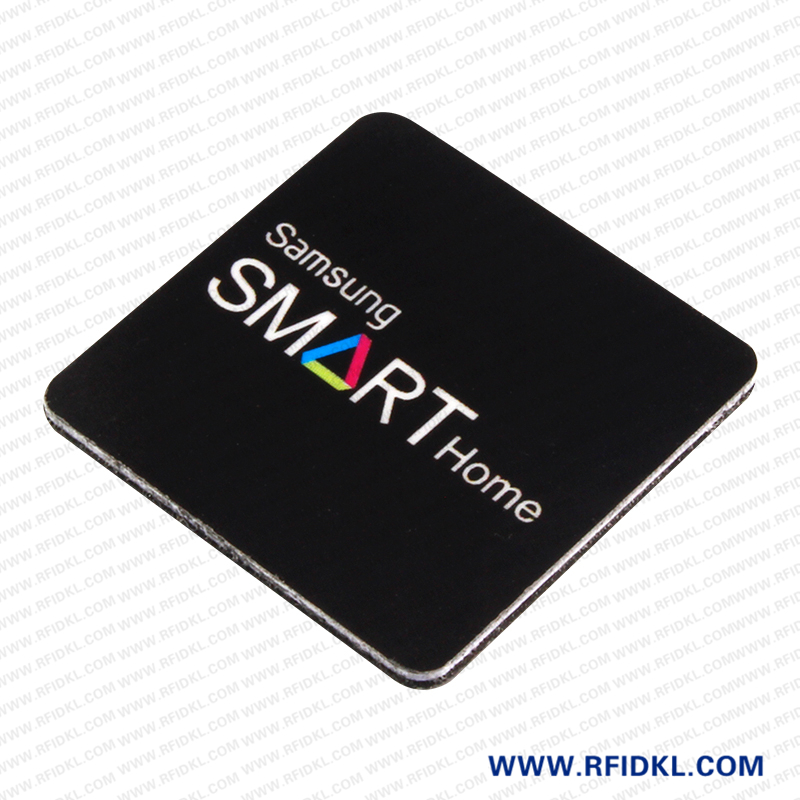

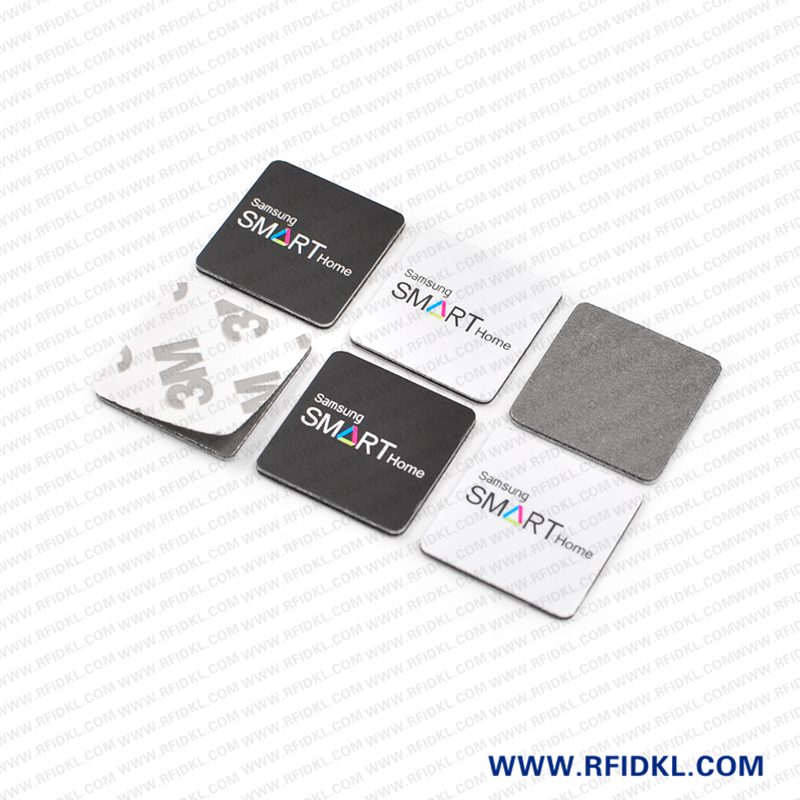

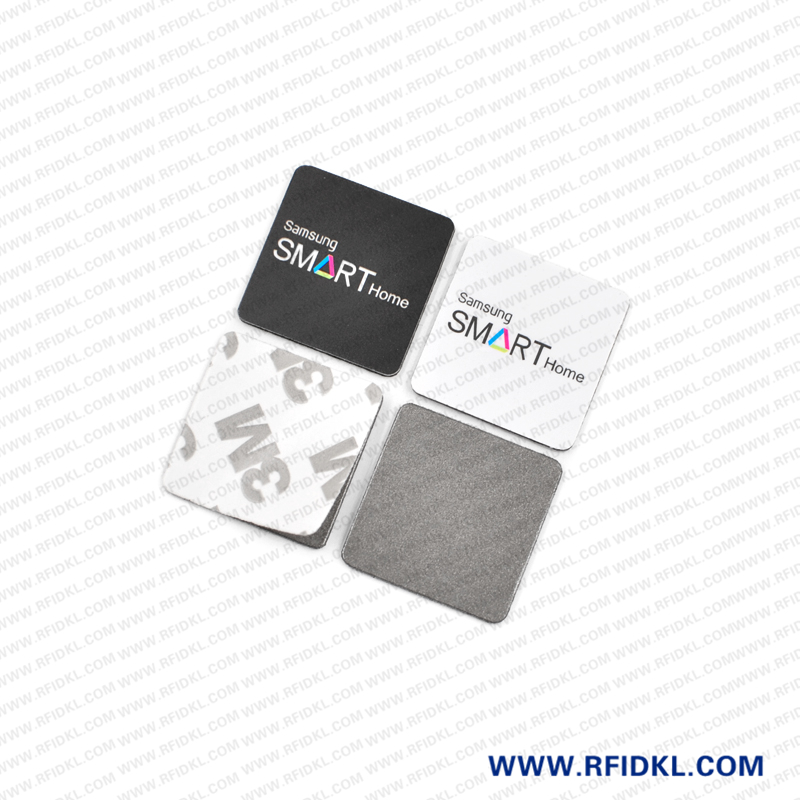

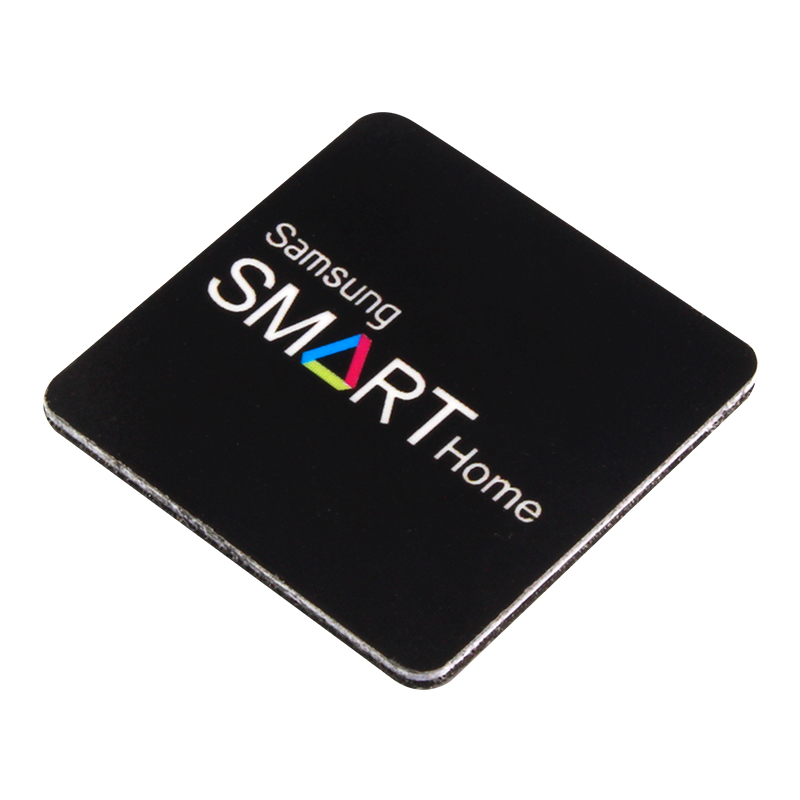

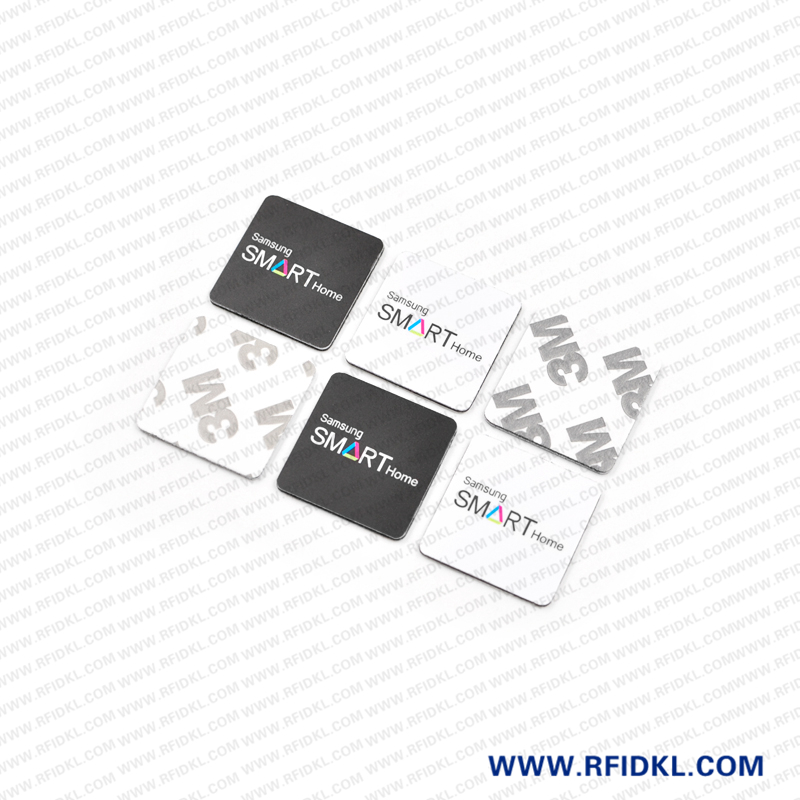

Good range PVC F08 RFID anti-metal tags for access control

Item:anti-metal tags

Chips:F08,Mifare desfire EV1 2K,NFC(custom)


Frequency:13.56 MHz

Colors:blue, green, red, black (custom).


Logo:silkscreen, offset printing, engraving etc.

Application: access control, identification, consuming etc.

Product introduction

Good range PVC F08 RFID anti-metal tags for access control

RFID Tags Technical Parameters:

RFID Tag ModelRFID Tag
ChipF08,ntag 213,ntag 215(custom)
RFID Tag Material PVC anti-metal self-adhesive label
All material are eco-friendly and safe for Children, meet EU standards
RFID Tag Size

(Accept custom size)


Customized logo is available;

Type of logo: Debossed, Debossed and colorfilled in,Embossed,Embossed with color,Screen Printed,CMYK printed,etc

Operating temperature0ºC-40ºC,Relative Humidity 60%-90%
RFID ApplicationCirculation management, production line automation, warehousing management, railway transportation monitoring, civil baggage, courier parcel

100pcs/opp bag, 10000pcs/ctn, carton size:34*46*30cm;

Accept customized package

1.  with non-toxic, no cracking, long life, do not stimulate the skin and so on.
2. The chips:over 100000 times reading and writing

3. After installing the electronic label, can be used for digital tracking.
4. Adjustable size, flexible, easy to wear, easy to use, waterproof, moisture, shock and high temperature.

1- 125KHZ LF RFID chip

Production Description:
LF rfid chip (125khz low frequency rfid chip) is widely used RFID technology.The chip we embed is original from original chip company.
Each of LF rfid chip have a unique seiral number.It is great solution for access control, time attendance system which do not require very high security level.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.

Specifications of LF RFID chip

Chip tpeMemory sizeFrequencyProtocolReadable/WritableContact/contactless
TK410064 bits125KHZISO11784/85Read onlycontactless
EM420064 bits125KHZISO11784/85Read onlycontactless
EM4305512 bits125KHZISO11784/85R/Wcontactless
EM44501K bits125KHZ
T5577363 bits125KHZ

2- 13.56 MHZ HF RFID chip

Production Description:
HF rfid chip (13.56mhz high frequency rfid chip) is widely used RFID technology. The chip we embed is original from original chip company.
Each of HF rfid chip have a unique seiral number. It is great solution for access control, Public transportation, Electronic toll collection, Loyalty cards, Event ticketing, Car parking, Electronic ticketing in public transport, Road tolling, Airline tickets, Home automation and appliances, Consumer electronics, Healthcare, Printers, Smart meters, Library and rental services, Healthcare, Ski ticketing, Asset management and smart shelf solutions, Factory automation etc.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.

Specifications of HF RFID chip

Chip typeMemory sizeFrequencyProtocolReadable/WritableContact/contactless
MIFARE Ultralight64 bytes13.56 MHZISO1443AR/WContactless
MIFARE Ultralight C192 bytes13.56 MHZISO1443AR/WContactless
Ntag 203168 bytes13.56 MHZISO1443AR/WContactless
Ntag 21080 bytes13.56 MHZISO1443AR/WContactless
Ntag 213180 bytes13.56 MHZISO1443AR/WContactless
Ntag 215540 bytes13.56 MHZISO1443AR/WContactless
Ntag 216924 bytes13.56 MHZISO1443AR/WContactless
Topaz 512512 bytes13.56 MHZISO1443AR/WContactless
MF1 S501024 bytes13.56 MHZISO1443AR/WContactless
F081024 bytes13.56 MHZISO1443AR/WContactless
ISSI 144391024 bytes13.56 MHZISO1443AR/WContactless
TKS501024 bytes13.56 MHZISO1443AR/WContactless
MF1 S704096 bytes13.56 MHZISO1443AR/WContactless
FM11 RF324096 bytes13.56 MHZISO1443AR/WContactless
ISSI 144694096 bytes13.56 MHZISO1443AR/WContactless
MIFARE DESFIRE EV1 2K2 K13.56 MHZISO1443AR/WContactless
MIFARE DESFIRE EV1 4K4 K13.56 MHZISO1443AR/WContactless
MIFARE DESFIRE EV1 8K8 K13.56 MHZISO1443AR/WContactless
MIFARE PLUS S2K2048 bytes13.56 MHZISO1443AR/WContactless
MIFARE PLUS S4K4096 bytes13.56 MHZISO1443AR/WContactless
ICODE SLI1K13.56 MHZISO15693R/WContactless
ICODE SLI-S2K13.56 MHZISO15693R/WContactless
ICODE SLI-X1K13.56 MHZISO15693R/WContactless
T12 K2K13.56 MHZISO15693R/WContactless
TAG IT2 K13.56 MHZISO15693R/WContactless

3- 860-960 MHZ UHF RFID chip

Production Description:
UHF rfid chip (860-960mhz ultra high frequency rfid chip) is widely used RFID technology. The chip we embed is original from original chip company.
Each of HF rfid chip have a unique seiral number. It is great solution for Supply Chain Management, Distribution Logistics, Product Authentication, Asset Inventory and Tracking, Baggage Handling and Tracking, Item Level Tagging, Consumer electronics, Fashion retail, FMCG, Supply chain management, Asset management etc.
it's integrated circuit (IC) and antenna.
Data is transferred via this antenna.

Specifications of UHF RFID chip

Chip typeMemory sizeFrequencyProtocolReadble/writableContact/contactless
Alien Higgs 3512 bits860-960MHZISO18000-6CR/WContactless
Impinj Monza 4512 bits860-960MHZISO18000-6CR/WContactless
UCODE G2XM512 bits860-960MHZISO18000-6CR/WContactless
UCODE G2XL512 bits860-960MHZISO18000-6CR/WContactless
EPC96 bytes860-960MHZISO18000-6CR/WContactless


Widely used in hospital patient identification, birth of the baby's identification, prison management, custody management, amusement park tickets. Bathing beach, airport parcel, postal service.
Silicone wristbands are mainly used for frequent wetting because the silicone wrist strap has a good waterproof function and flexibility, so it is very suitable for making silicone wrist strap, bring the watch beautiful and beautiful is also very practical, good feel completely Affect. The silicone label is made for high temperature operation environment, because the silicone itself has a very good anti-shock high temperature performance, it is very suitable for high temperature production workshop and other places. Such as the water park locker is the application of the kind of silicone wrist watch, greatly facilitate the storage of personal items and improve the safety of the storage.
Widely used in access control, consumption, foot bath sauna, bath massage, spa time management, swimming pool, bath, cooling pool, water patrol, field operations and other hot and humid environment, prolonged soaking in the water does not affect the use of the product.

Our company:

SHENZHEN KONGLAM RFID TECH CO.,LTD, founded in June 2009, is a high-tech enterprise specializing in development, production and sale of smart cards, RFID wristbands and Labels.
KONGLAM deals in RFID wristbands series, RFID Labels series and smart card series etc. mainly and therefore customer requirement oriented production and customized non-standard product manufacturing are allowed. Our chips for product application are supplied to many famous semi-conductor manufacturers in the world, including NXP founded by Phil ips, EM, TI, ST, IMPINJ, ATMEL, INSIDE of France, JEWEL of the UK as well as Fudan Microelectronics and Huahong Integrated Circuit etc. of our country. Our products can be widely used in security, all-in-one-card for door access, medical treatment, exhibition, tourism, entertainment, food traceability, assets management, storage logistics etc.
KONGLAM is specializ ed and deals in new product research development and manufacturing process thanks to the rich experience in RFID management. We have a perfect after-sales service system --- the one-to-one service mode is provided, ensuring the quickest response to customer, treatment for customer feedback and considerate before- in- after-sales services.
KONGLAM, relying on our accurate market positioning and continuously innovative business strategies, can provide the highest cost performance products in the world. Our products exported to the Europe and America have won golden opinions and supports in the industry.
We will always be wholeheartedly in providing the first-rate services for customers, system integration dealers and agents in the world with our consistent principle of "Good Faith, Excellent, and Innovation".
Sincere cooperation and win-win outstanding achievements are always expected!

1.What about the payment?
   T/T and West Union
2.What about the shipping?
   Fast way: By DHL,FedEx,UPS,TNT,EMS,(5-7days)

   By Air:3-5 days

   Cheap way:By sea/By post(20-40days)

3.Are you a trading company or factory?
  We are the manufacturer of RFID cards in China, and have more than 10 years experience.
  We supply products to many World Brand Companies ;

4.How do you control the quality?
   We have strict QC system to make sure the quality of our RFID Label related products,get CE certification;

5.How about your service?
   All-around ON TIME service ---- We are always willing to work late to meet your urgent needs;

6.Where is your company located? How can I visit there?
  Our company is located in Shenzhen, China. Contact us ASAP.


Package:100 pcs/bag,10 bags/carton,10000 pcs/carton


N.W:15 kg/carton

G.W:16 kg/carton
